Aging hardware in existing casement installations frequently creates operational drag, air leakage, and reduced security. Facility managers often struggle to execute timely upgrades because original component profiles and fastening geometries can be difficult to identify. When matching original window assemblies, retrofitting requires systematic measurement to prevent costly trial-and-error delays on site.
To solve these compatibility-challenges, CMECH developed the L‑Series as a standardized hardware-family. Designed to retrofit into standard European and commercial frame-extrusions, it features reinforced 304 stainless-steel load-bearing components. Combined with high‑strength handle-connecting seats, these systems deliver a reliable performance-upgrade over standard original-equipment hardware while shortening long-term maintenance-cycles.
Identifying the Component Type and Failure Mode
Identifying specific failure signatures helps determine whether individual components or complete hardware sets require renewal. Seized hinges, cracked handles, worn lock keeps, and perimeter seal compression loss each point toward distinct functional requirements. Analyzing these symptoms before procurement prevents unnecessary full-frame replacements and focuses resources on the necessary mechanical areas.
Distinguishing between active-sash hardware solution and frame-mounted elements simplifies the specification process. Active components include handles, friction stays, and internal transmission rods that move during operation. Conversely, frame-mounted hardware solution consists of keeps, shootbolt sockets, and specialized drainage caps. Categorizing parts according to their location ensures accurate replacement matching for complex commercial window frames.
Measuring Critical Dimensions for Casement Window Parts
Accurate dimensional analysis dictates the long-term success of any retrofit project. Technicians must verify backset depth, spindle length, handle PZ centers, hinge stack height, and keep-to-frame offsets prior to ordering replacement elements. Taking precise measurements ensures the new casement window parts align properly with existing profile grooves without requiring extensive structural alterations.
The CMECH L‑Series utilizes a 10 mm spindle and a milled-free built-in hinge geometry. This configuration is compatible with standard 20 mm Euro-groove and other matching European‑profile channels, enabling direct retrofits onto existing active sashes where profile‑conditions permit. The outswing‑casement system accommodates sash‑dimensions ranging from 400 mm to 750 mm in width and 450 mm to 1 800 mm in height without modification to structural frame-extrusions.
Matching Hinge and Stay Configurations to Sash Weight
Calculating the total effective sash load requires assessing glass thickness and overall panel dimensions against manufacturer capacity tables. Under-specifying load limits leads to accelerated component wear and progressive gasket-compression loss. Selecting appropriately rated friction stays or hinges helps maintain structural alignment over decades of daily physical use across varied commercial properties.
Engineered for substantial load-demands, the L‑Series built-in hinge incorporates a patented anti-sag structure. It features a U-shaped bent reinforcement-plate secured by six solid-rivets, delivering a reliable 50 kg load capacity under compliant profile and fabrication conditions. This robust-engineering prevents progressive sash-droop, which is a primary trigger for premature weather-seal failures in older window-configurations.
Transmission Rods and Anti-Deviation Drive Geometry
Replacing concealed drive assemblies requires extracting the original transmission rod to count engagement points accurately. Technicians should match overall rod length and locking cam geometry to maintain proper perimeter sealing pressure. Matching these physical attributes prevents mechanical binding while restoring uniform handle actuation throughout the full operational arc.
The L‑Series drive gear utilizes high-quality carbon steel treated with a nano-blue surface coating for enhanced corrosion resistance. Its integrated reversible anti-deviation nut maintains precise positioning without unwanted lateral swing. This design minimizes tolerance-stack drift, reducing handle wobble and uneven lock-point engagement across mixed-brand hardware repairs.
Handle Profiles and Selecting Casement Window Replacement Parts
Verifying handle spindle diameters, spline counts, and mounting-screw spacing is essential when sourcing casement window replacement parts. A mismatched spindle size prevents the internal drive gear from completing its full rotation, leaving locking points partially disengaged. Proper spindle alignment ensures smooth torque transmission and complete perimeter engagement during closure.

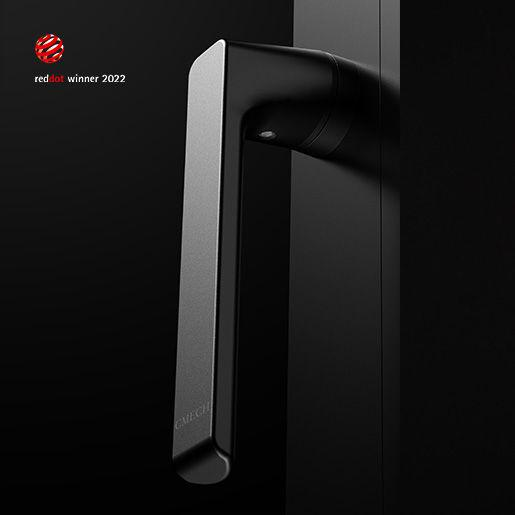

The L‑Series handle applies a stable triangular-structure principle to minimize movement-induced wear over time. Upgrading from the conventional 7 mm industry standard to a robust 10 mm spindle provides exceptional torsional rigidity. This hardware‑mechanical design helps maintain sag-free handle operation across the extended operational lifespan of commercial properties.
Weatherproofing and Seal Performance Optimization
Evaluating perimeter weather seals requires identifying whether the original frame uses compression-set or bulb-seal profiles. Over time, original rubber compounds harden and lose the elastic recovery needed to block draft infiltration. Renewing these seals alongside mechanical casement window parts ensures the entire window assembly recovers its structural thermal efficiency.
The L‑Series features damping‑optimised geometry for quiet sash movement during daily operation. Co‑ordinated triple‑sealing technology delivers high‑level system‑performance, achieving watertightness at 700 Pa, air permeability at Grade 8, and wind‑load resistance up to 5 000 Pa under compliant profile and fabrication conditions. These performance levels can frequently exceed the original specification of the refurbished framing‑system.
Sourcing Strategy and Batch Consistency with CMECH
Standardizing on a single hardware line for multi-unit retrofits offers significant supply chain advantages. Sourcing cohesive casement window replacement parts simplifies inventory management and maintains consistent finish tones across all operable sashes. Facility managers benefit from streamlined maintenance routines and consolidated technical support throughout the active repair process.
By choosing CMECH hardware platforms, property developers protect their architectural assets through long-term component compatibility. Standardized technical specifications minimize installation risks across expansive commercial developments. High-performance mechanical components ensure windows function efficiently, providing reliable security and energy efficiency across the building’s lifecycle.
All hardware specifications, performance data and material parameters are sourced from CMECH official product manuals and certified test reports.
